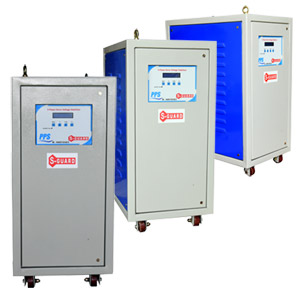

Rated Capacity : 300 KVA Phase : Three Phase Usage/Application : Commercial Cooling Type : Oil cooled Control Type : Digital controller Place Of Origin : INDIA Country of Origin : Made in India
Specification:
Input Voltage Range : 300 - 460 V Output Voltage Range : 400 V ± 1% Frequency : 47 - 53 Hz. Wave Form distortion : None added the stabilizer Speed of correction : 23 v / sec. Regulation : ± 1.0% from no load to full load Ambient temperature : 0 - 55°C Extended Input Range : 180 - 460 / 260 - 460 / 280 - 460 / 210 - 460 /
also available Spike suppressor or line filter can also be supplied.
Optional Features:
• High / Low voltage protection (Trip)
• Automatic High and low voltage protection (Trip off) in the case of mains supply goes beyond the range of the stabilizer or failure of the control circuit. This can be with or without time delay circuit.
• Single Phasing Protection: Protection against single phasing can be provided in 3 phase stabilizer.
• Over / Short Circuit Protection: Protection against overload / short circuit can be provided through MCB or MCCB.
